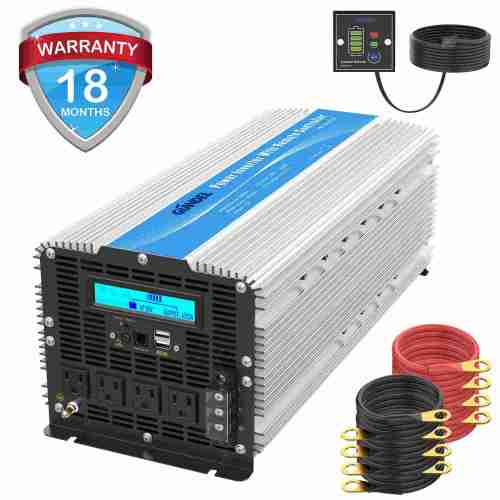

5000Watt Heavy Duty Modified Sine Wave Power Inverter

Specifications:

• Output wave: Modified sine wave

• Power (4xAC Outlets): 5000W Rated,10,000W peak

• USB output: 2xDC 5V/2.4A(max)

• Rated input Voltage: 12VDC

• Nominal input voltage:9.8-16VDC

• Nominal output voltage:AC 120+/-10% V

• No load current: Max 3.5A

• With LCD display to view input volt,output volt,battery level,etc

• Internal fuses:20x30A

• Battery cables:4 pairs with length of 2 ft

• Remote controller: remote controller with 15ft cable. More convenient to control the inverter ON/OFF

•The inverter Switch is long press type,please press it 1-2 second to turn it on or off.

More details and tips:

• connect the inverter to a 12V battery, and plug your AC devices into the inverter

• Please use the standard cables we provide with product.

• Please do not leave the power inverter in the ON position while your car is off.

• Disconnect the positive battery terminal before doing any wiring to the inverter

• Do not put the inverter into sunlight directly, keep it in cool and dry environment

• Don’t use the inverter with a product that draws a higher wattage the inverter can provide,as this may cause damage to the inverter and product

Package List:

• 1x 5000W Power Inverter

• 4xpairs of Battery Cable

• 1xRemote Controller with 15ft Cable

• 1xUser Manual

• 1xshockproof pad Manual

• 8xshockproof mads
